Security Requirements

• confidentiality: protect sensitive data from unauthorized access
• integrity: information has not been altered without proper authorization
• availability: maintain operational readiness of a system
• non-repudiation: impossibility to inappropriately deny an action
• auditability: ability to reconstruct earlier states of a system
• accountability: ability to hold an entity responsible for its actions
• privacy: security of personal information; a person has control over which information is generated, stored, processed, deleted and by whom
• anonimity: the identity of an entity is hidden

Security Principles

• security analyses: hypothesize threat / attacker and systematically try to counter that threat
• security requirement: the specific needs or conditions that must be met to ensure the protection of a system (e.g. confidentiality, availability, integrity...)
• security mechanisms: tools and methods used to enforce security requirements (e.g. cryptography, policies...)
• security principles: abstract guidelines that provide high-level direction for designing and analyzing security mechanisms and their trade-offs (wisdom + best practices, but not direct design solutions!)
  • least privilege: every subject should not have more privileges than necessary to complete its job
  • complete mediation: access to every object must be controlled in a way not circumventable (i.e. checked to be sure it's allowed)
  • fail-safe defaults / implicit deny: security measures should start in a secure state and return to a secure default state in case of failure (variant: default decision is lack of access)
  • compartmentalization: organize resources into isolated groups with limited means of communication
  • minimum exposure: minimize the "attack surface" the system presents, by e.g. minimizing external interfaces, limiting information given etc.
  • open design: the security of a mechanism should not depend on the secrecy of its design / implementation (i.e. no security through obscurity)
  • economy of mechanism: security mechanisms should be as simple as possible (\to$\to$ less bugs)
  • defense in depth: employ multiple layers of mechanisms to hinder any potential attacks (the more layers, the more difficult to compromise, the less likely attackers try to break it)
  • least common mechanism: mechanisms used to access resources should not be shared
  • psychological acceptability: mechanisms should not make the resource more difficult to access (than if they didn't exist)

Security, Usability, Psychology

• weakest link: the security of a system is "a chain; it is as strong as its weakest link" (typically humans)
• password problem: high usability means easy to remember; high security means difficult to guess; can passwords be both?
  • authorization: grant access to resource
  • authentication: prove claim of being someone using authentication factors
    • knowledge factors: something you know (e.g. password, security questions)
    • ownership factors: something you have (e.g. physical passkey, ID)
    • biometric factors: something you are (e.g. retinal scan, fingerprints)
    • location-based factors: somewhere you are (e.g. current location for car keys)
    • time-based factors: sometime you are in
  • multi-factor authentication: use more than one factor to authenticate user
  • password manager: solution, store (long and complex generated) passwords securely using master password

Social Engineering

• social engineering: manipulate victim to perform bad actions and / or reveal information

Principles (Cialdini)

• reciprocity: people tend to return favors
• commitment and consistency: if people openly commit to something, they are more likely to honor that commitment
• social proof: people will do things they see others doing
• authority: people tend to obey authority figures
• liking: people are easily persuaded by other people whom they like / know
• scarcity: perceived scarcity generates demand

Taxonomy

• type: what?
  • phyiscal: attacker performs a physical action
  • social: attacker relies on socio-psychological persuasion tactics (see Cialdini's principles)
  • technical: attacker performs technical actions, typically over the internet
  • socio-technical: social + technical
• channel: how?
  • e-mail: phishing, reverse social engineering
  • instant messaging: phishing, reverse social engineering, identity theft
  • telephone, VoIP: where a victim might delivering sensitive information
  • social networks: fake identities
  • cloud: situational awareness of a collaboration scenario
  • websites: watering hole, phishing (fake websites)
• operator: who?
  • human: attack conducted by a person on a limited number of targets
  • software: (automatic) attack

Attack Vectors

• dumpster diving: sifting through trash to find sensitive information
• shoulder surfing: direct observation techniques, e.g. looking over someone's shoulder at their screen
• reverse social engineering: establish trust between attacker and victim; convince victim to reach out to attacker
• waterholing: compromise a website that is likely to be of interest to the chosen victim(s)
• advanced persistent threat (APT): long-term, internet-based espionage attack
• baiting: malware-infected storage medium left in a location where it is likely to be found by the targeted victim(s)

Examples

• phishing: impersonate legitimate organizations or individuals to trick victim into revealing sensitive information
  • spear phishing: focus on an individual rather than a wide collection of people (general phishing)
  • dynamite phishing: additionally use personal information to make it more convincing
  • smishing: phishing via text messages (SMS)

Threat Modeling

• power: what can an attacker do?
• cost: how expensive is the attack for them?
• incentive: what do they get from attacking us?
• actions: what are they doing to reach their goal?
• countermeasures: what can we do to fight them?

ISG Terminology

• vulnerability: a flaw or weakness in a system, process, or control that could be exploited to cause harm (i.e. what could let something bad happen, what could enable a threat)
• attack: intentional act by which an entity attempts to evade security services and violate the security policy of a system
• attacker: the person performing the attack
• attack vector: path or means by which an attacker gains access to a system or network
• threat: a potential cause for security violation (i.e. what could happen if the vulnerability is exploited)
• asset: anything of value to an organization (e.g. data, systems, personnel...)
• risk: expectation of loss when a threat exploits a vulnerability
• countermeasure: measure that opposes a threat, vulnerability or attack

Attacker Models

• crypto systems
  • known-plaintext (KPA): attacker knows one or more pairs of plaintexts and their corresponding ciphertexts, using these to attempt to deduce the key or learn enough about the cipher to decrypt other messages
  • chosen-plaintext (CPA): attacker submits arbitrary plaintexts of their choosing to an encryption oracle and obtains the resulting ciphertexts
  • ciphertext-only (COA): attacker only knows the ciphertext (weakest model), attempt to exploit redundancy or structural weaknesses
• interaction protocols: between 2 parties
  • honest-but-curious users: follow the protocol honestly and obey rules but may collude to learn more than they should
  • malicious users: break rules to get more information
• eavesdropping: listen in on a shared channel; can be blocked using encryption
• man-in-the-middle (MITM): someone who can eavesdrop, modify, delete and inject information in a "conversation"
  • format: \text{defender} \xleftrightarrow{\text{message}} \text{attacker} \xleftrightarrow{\text{message}} \text{defender}$\text{defender} \xleftrightarrow{\text{message}} \text{attacker} \xleftrightarrow{\text{message}} \text{defender}$
• remote attacker: exploits vulnerabilities
  • format: \text{attacker} \xrightarrow{\text{inputs}} \text{defender}$\text{attacker} \xrightarrow{\text{inputs}} \text{defender}$
• man-at-the-end (MATE): the adversary has full control over or visibility into the end‑point environment (e.g. application); can observe and manipulate code, perform reverse engineering and extraction, bypass protocols etc.
  • format: \text{defender} \xrightarrow{\text{software}} \text{attacker}$\text{defender} \xrightarrow{\text{software}} \text{attacker}$
• malware: a malicious program which the attacker wants to run on a victim's machine which can have a different functionality based on the goal of the attacker
• side-channel attack: attacker uses any source of information to get information about a victim, typically external factors (e.g. power consumption, time taken etc.)
• social engineering: manipulate victim by exploiting human psychological factors

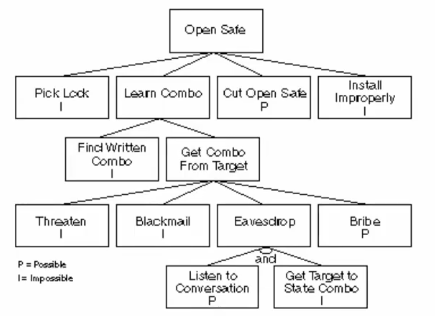

Attack Trees

• attack tree: representation of an attacker's plan to achieve a goal
  • nodes: threats, with assigned attributes (probabilities, possibilities, estimated cost)
  • top: goal; lower: specifics (how?)


Risk Analysis

• risk analysis: consider crucial assets \to$\to$ what happens if CIA of these assets is violated \to$\to$ how could this have happened \to$\to$ think about and deploy countermeasures

STRIDE

• STRIDE model: a model for identifying computer security threats
  • spoofing: attacker identifies themselves as another person / entity
  • tampering: attacker can manipulate data which they shouldn't be able to
  • repudiation: even if an attacker is caught, we cannot prove they have done it
  • information disclosure: attacker can read private / confidential data
  • denial of service: attacker can stop system from working
  • elevation of privilege: attacker can get more rights than they should
• steps:
  1. identify objectives: what assets? what compliance requirements? what quality requirements? etc.
  2. create application overview: identify application's key functionality and characteristics
  3. decompose application: identify trust boundaries, data flows etc.
  4. identify threats: identify threats and attacks that might affect application and compromise your security objectives
  5. identify vulnerabilities: authentication, authorization

ATT&CK

• ATT&CK matrix: knowledge base of adversary tactics and techniques based on real-world observations
  • initial access: how can the attacker gain access?
  • execution: how can the attacker execute his attack?
  • persistence: how can the attacker prevent his attack from being aborted?
  • privilege escalation: how can the attacker gain more privileges?
  • etc...

Web App Security

• OWASP Top 10 (2021): top 10 most critical vulnerabilities (2025 TBD)
  1. broken access control: restrictions not properly enforced
  2. cryptographic failures: no proper protection
  3. injection: send untrusted data as part of command or query
  4. insecure design: broad
  5. security misconfiguration: insecure default / incomplete / ad hoc configurations
  6. vulnerable / outdated components: self-explanatory
  7. identification / authentication failures: authentication and session management improperly implemented
  8. software / data integrity failures: insecure CI/CD pipeline
  9. security logging / monitoring failures: attackers can maintain persistence and expand their domain of influence
  10. server-side request forgery (SSRF): web app is fetching a remote resource without validating the user-supplied URL
• vulnerable and outdated components: pay attention to dependencies; vulnerability in one dependency \to$\to$ vulnerability in entire software
  • solutions: remove unused dependencies, keep bill of software, regularly check CVEs
• broken access control: usually misconfiguration that allows directory listing and / or traversal
  • insecure direct object reference (IDOR): attackers can access or modify objects by manipulating identifiers used in a web application's URLs or parameters (e.g. user 123 can view 124's data on example.com/users/124, no further checks)
  • solutions: properly enforce access rights, use UUIDs
• security misconfiguration: directory / path traversal (a.k.a. ../ attack)
  • solutions: restrict user access, use hardcoded paths, surround user input with own path code
• server-side request forgery (SSRF): trick a server into making a request on the attacker's behalf (attacker sends a crafted URL to an application endpoint that fetches remote resources; because the server performs the request, it can access internal-only systems or bypass network firewalls)
  • solutions: input sanitation, don't send raw responses to clients, use whitelists when accessing internal IPs
• cross-site request forgery (CSRF / XSRF): trick a logged-in user’s browser into making unwanted actions on a web application in which they’re authenticated
  • solutions: XSRF tokens, SameSite attribute
• clickjacking: overlay fake website with hidden frame of legit website
  • solution: disallow embedding of content by potentially hostile pages
• (BONUS) SQL Injection: pass malicious SQL queries to unchecked inputs
  • blind SQL injection: iterative SQL injection using an oracle which only reports back true or false
  • solutions: input sanitation, prepared statements
• (BONUS) cross-site scripting (XSS): force website to execute malicious JavaScript code client-side
  • non-persistent (reflected): one-time (e.g. as parameter in URL)
  • persistent (stored): stored on website (e.g. comment with JavaScript code in it)
  • DOM-based: payload executed client-side due to unsafe / unchecked HTML manipulation (e.g. raw innerHTML)
  • solutions: content-security-policy (CSP), HTTPonly cookies, input sanitation
• problems with input sanitation: whitelist / blacklist approach, encoding (HTML vs. URL vs. JavaScript)

System-Level Security

• buffer overflow: a program reads from or writes data to a buffer beyond the buffer's allocated memory
  • problem: Von-Neumann architecture \to$\to$ program and data share the same memory \to$\to$ data beyond this buffer can be interpreted as code
  • classic char buffer example: b...b|f...f|r...r (high \to$\to$ low, b: buffer, f: stack frame pointer, r: return address \leftarrow$\leftarrow$ overwrite this!)
  • solutions: use memory-safe langauges, defensive programming (safe functions)
• supply chain attacks: the injection of malicious code into a software package (library) in order to compromise dependent systems further down the chain
  • vulnerable package: a package that unintentionally contains a security vulnerability (e.g. Log4J)
  • malicious package: a package that intentionally contains a security vulnerability (e.g. xz)
  • problem: just because a piece of software is open-source, doesn't mean that people will actually look at / check the code for vulnerabilities
  • solutions: write the code yourself, keep log, don't use outdated packages, check CVEs etc.
• attacks on self-made cryptography: don't roll your own crypto!

Obfuscation

• obfuscation: transform program P$P$ into P'$P'$ from which it is harder to extract information than from P$P$
  • static obfuscation: remain fixed at runtime, make static analysis more difficult, can be attacked through dynamic techniques
  • dynamic obfuscation (self-modifying code): programs keep changing at runtime
  • targets: layout (identifiers, code layout), data (data structures), control flow (algorithms)
• reverse engineering: extract data or model by inspecting low level description and / or behavior

Static Obfuscation

Intellectual Property (Code, Algorithms)

• scramble identifiers: replace identifiers (variable names, function names etc.) with random strings (e.g. sum \to$\to$ f8df3e0b12a)
• instruction substitution: replace binary operation with something functionally equivalent but more complicated (e.g. a = b + c; \to$\to$ r = rand(); a = b + r; a = a + c; a = a - r;)
• garbage code insertion: opposite of dead code removal; insert code which functionally changes nothing
• merging and splitting functions: combining / dividing code of multiple / one function into a single / more function(s)
• opaque predicates: a boolean expression whose value is known to the obfuscator but is hard for an attacker to infer
  • purpose: insert bogus control-flow (dead / superfluous branches)
  • can be broken using abstract interpretation (systematically analyzing predicates using mathematical reasoning and symbolic manipulation)
  • P^T$P^T$: opaquely true predicate (always true) (e.g. (x * x + x) % 2 == 0)
  • P^F$P^F$: opaquely false predicate (always false) (e.g. x * x < 0)
  • P^?$P^?$: opaquely intermediate predicate (either true or false) (e.g. x % 2 == 0)
• control flow flattening: remove control flow structure of functions
  1. put each basic block as a case in a switch statement
  2. wrap the switch in an infinite loop
  • basic block: a straight-line code sequence with no branches in except to the entry and no branches out except at the exit
  • optimization: keep tight loops as one switch entry, use gcc's address of labels (&&)
  • attack: rebuild original CFG
  • solutions: opaque expressions
• virtualization obfuscation: obfuscate algorithm using own (random) ISA and emulator
  • prep: split program into basic blocks (gotos)
  1. generate random bytecode ISA L$L$ covering all instructions in P$P$
  2. translate P$P$ to L$L$
  3. create emulator to interpret L$L$ on host machine
  • pros: random ISA, implicit control flow flattening, flexibility to add other obfuscation techniques on top

Example: Control Flow Flattening

/* before */
int gcd(int a, int b) {
    while (a != b) {   // B0
        if (a > b) {   // B1
            a = a - b; // B3
        } else {
            b = b - a; // B4
        }
    }
    return a;          // B2
}

/* layout */
B0: while (a != b) goto B1; goto B4;
B1: if (a > b) goto B2; goto B3;
B2: a = a - b; goto B0;
B3: b = b - a; goto B0;
B4: return a;

/* after */
int gcd(int a, int b) {
    int next = 0;
    while (true) {
        switch (next) {
            case 0:  if (a != b) next = 1; else next = 2; break;
            case 1:  if (a > b)  next = 3; else next = 4; break;
            case 2:  return a;
            case 3:  a = a - b;  next = 0; break;
            case 4:  b = b - a;  next = 0; break;
            default: break;
        }
    }
}

/* before */
int gcd(int a, int b) {
    while (a != b) {   // B0
        if (a > b) {   // B1
            a = a - b; // B3
        } else {
            b = b - a; // B4
        }
    }
    return a;          // B2
}

/* layout */
B0: while (a != b) goto B1; goto B4;
B1: if (a > b) goto B2; goto B3;
B2: a = a - b; goto B0;
B3: b = b - a; goto B0;
B4: return a;

/* after */
int gcd(int a, int b) {
    int next = 0;
    while (true) {
        switch (next) {
            case 0:  if (a != b) next = 1; else next = 2; break;
            case 1:  if (a > b)  next = 3; else next = 4; break;
            case 2:  return a;
            case 3:  a = a - b;  next = 0; break;
            case 4:  b = b - a;  next = 0; break;
            default: break;
        }
    }
}

Example: Virtualization Obfuscation

/* before */
void foo(int x) {
    int y = 10;        // B0, integer assignment
    y++; y++;          // B0, integer increment
    if (x > 0) {       // B0, branch if > 0
        y++;           // B2, integer increment
    }                  //
    else {}            // B1
    printf("%d\n", y); // B3, call to printf with integer argument
}

/* step 1.1: ISA  */
/* integer assignment */  52, LHop, RHop   ;
/* integer increment  */  03, op           ;
/* branch if > 0      */  08, op  , offset ;
/* call to printf     */  18, op           ;
/* halt               */  00               ;

/* step 1.2: data */
int data[] = {
    00, // x
    00, // y
    10, // const. 10
    05  // jump offset (in bytes)
};

/* step 2: translate */
int code[] = {
    52, 01, 02, // y = 10;
    03, 01,     // y++;
    03, 01,     // y++;
    08, 00, 03, // x > 0...
    03, 01,     // y++;
    18, 01, 00  // printf(...);
};

/* step 3: emulator */
/* see virtualization techniques */

/* before */
void foo(int x) {
    int y = 10;        // B0, integer assignment
    y++; y++;          // B0, integer increment
    if (x > 0) {       // B0, branch if > 0
        y++;           // B2, integer increment
    }                  //
    else {}            // B1
    printf("%d\n", y); // B3, call to printf with integer argument
}

/* step 1.1: ISA  */
/* integer assignment */  52, LHop, RHop   ;
/* integer increment  */  03, op           ;
/* branch if > 0      */  08, op  , offset ;
/* call to printf     */  18, op           ;
/* halt               */  00               ;

/* step 1.2: data */
int data[] = {
    00, // x
    00, // y
    10, // const. 10
    05  // jump offset (in bytes)
};

/* step 2: translate */
int code[] = {
    52, 01, 02, // y = 10;
    03, 01,     // y++;
    03, 01,     // y++;
    08, 00, 03, // x > 0...
    03, 01,     // y++;
    18, 01, 00  // printf(...);
};

/* step 3: emulator */
/* see virtualization techniques */

Secret Data

• opaque expressions: generalization of opaque predicates to arbitrary values
  • E^{=v}$E^{=v}$: opaque expression of value v$v$table‑lookup
  • array aliasing: replace data with equivalent data with respect to a statically initialized array where certain invariants hold (e.g. every 3rd value starting from 0 is \equiv_7 3$\equiv_7 3$)
• white-box cryptography: implementing cryptographic algorithms in such a way that the secret keys remain hidden even when an adversary has full access to the implementation
  • hide keys by transforming the cipher into a giant table‑lookup so that there’s no obvious key material in memory or code

Example: Array Aliasing

/* every third cell starting from 0 has a value 3 mod 7  (*) */
/* every third cell starting from 1 has a value 5 mod 11 (!) */
/* every other cell contains some fixed value            (X) */
int g[] = {10, 5, 13, 3, 27, 5, 24, 38, 0, 73, 115, 3, 66, 60, 17, 31};
//         *   !  X   *  !   X  *   !   X  *   !    X  *   !   X   *
//         0   1  2   3  4   5  6   7   8  9   10   11 12  13  14  15

int gcd(int a, int b) {
    ...
    next = g[3] % g[11] - g[8];           // 3 % 3 - 0            = 0 - 0             = 0
    next = 3 * g[11] - 4 * (g[4] % g[5]); // 3 * 3 - 4 * (27 % 5) = 9 - 4 * 2 = 9 - 8 = 1
    next = g[5] - g[3];                   // 5 - 3                                    = 2
    next = g[2] % g[1];                   // 13 % 5                                   = 3
    next = g[15] - g[4];                  // 31 - 27                                  = 4
    ...
}

/* every third cell starting from 0 has a value 3 mod 7  (*) */
/* every third cell starting from 1 has a value 5 mod 11 (!) */
/* every other cell contains some fixed value            (X) */
int g[] = {10, 5, 13, 3, 27, 5, 24, 38, 0, 73, 115, 3, 66, 60, 17, 31};
//         *   !  X   *  !   X  *   !   X  *   !    X  *   !   X   *
//         0   1  2   3  4   5  6   7   8  9   10   11 12  13  14  15

int gcd(int a, int b) {
    ...
    next = g[3] % g[11] - g[8];           // 3 % 3 - 0            = 0 - 0             = 0
    next = 3 * g[11] - 4 * (g[4] % g[5]); // 3 * 3 - 4 * (27 % 5) = 9 - 4 * 2 = 9 - 8 = 1
    next = g[5] - g[3];                   // 5 - 3                                    = 2
    next = g[2] % g[1];                   // 13 % 5                                   = 3
    next = g[15] - g[4];                  // 31 - 27                                  = 4
    ...
}

Dynamic Obfuscation

• software diversity: every customer gets a different "version" of a software
  • pre-distribution software diversity: different binaries generated and distributed by developer (static)
  • post-distribution software diversity: all users get same binary, which contains self-modifying code (dynamic)
• self-modifying code: two phases
  1. compile-time: transform program into initial configuration and add runtime code transformer
  2. runtime: interleave execution of program with transformer calls (changes code segment at runtime)
• replacing instructions: prevent code recovery via memory snapshot
  • idea: replace real instruction with bogus instruction; right before execution, replace bogus with real; right after, replace real with bogus
  • implementation: choose 3 points A,B,C$A,B,C$ in CFG, all paths to B$B$ must flow through A$A$ and all paths from B$B$ must flow through C$C$
    • A$A$ replaces bogus instruction in B$B$ with real
    • C$C$ replaces real instruction in B$B$ with bogus

• dynamic code merging: keep code in constant flux
  • idea: two or more function share same location in memory, create template; before a function is called, patch memory using edit script to load it
  • implementation (f_1,f_2$f_1,f_2$): create template T$T$ with same size as largest function
    • T$T$ contains values at memory offsets which are common for f_1,f_2$f_1,f_2$
    • T$T$ contains wildcard values at memory offsets which are not common
    • edit scripts e_1, e_2$e_1, e_2$ replace wildcards of T$T$ to load f_1,f_2$f_1,f_2$ respectively
• dynamic decryption and reencryption: at some point in basic block, decrypt next block, jump, then encrypt previous basic block

Example: Dynamic Code Merging

e_1 = \{0 \to \texttt{b7}, 3 \to \texttt{53}, 4 \to \texttt{fa}\}$e_1 = \{0 \to \texttt{b7}, 3 \to \texttt{53}, 4 \to \texttt{fa}\}$
e_2 = \{0 \to \texttt{e9}, 3 \to \texttt{33}\}$e_2 = \{0 \to \texttt{e9}, 3 \to \texttt{33}\}$

Collberg's Taxonomy

• Collberg's taxonomy: metric for evaluating code obfuscation techniques
  • potency: comprehensibility of code by humans
  • stealth: identifiability of obfuscated code
  • resilience: resistence against automatic deobfuscation
  • cost: performance and resource overhead of obfuscation

Software-Based Integrity Checking

• software-based integrity checking: routines integrated into program itself, obfuscated
• program signing / signature verification: only effective against static patching attacks (i.e. before program is even loaded into memory)

Code Integrity

• self-checksumming: check integrity of code by hashing and verifying segments (with expected hashes) periodically at runtime
  • post-compilation: addresses unknown before compilation, architecture-dependent...
  • Chang / Atallah: harden with a network of checkers (check eachother) and repairers (repair tampered regions) and hide hashes
  • cyclic checkers: B_1 \xrightarrow{\text{checks}} B_2 \xrightarrow{\text{checks}} B_3 \xrightarrow{\text{checks}} B_1 \xrightarrow{\text{checks}} ...$B_1 \xrightarrow{\text{checks}} B_2 \xrightarrow{\text{checks}} B_3 \xrightarrow{\text{checks}} B_1 \xrightarrow{\text{checks}} ...$ (hash values in cycles replaced with placeholders to be patched)
  • attack: pattern matching
  • solution: obfuscation
  • attack: memory split attack
    • constitute two memories: untampered memory for reads (self-checksumming checks) and tampered memory for fetches (execution)
    • alter OS kernel such that all code segment reads read the untampered memory, while instruction fetches read the tampered memory
  • solution: self-modifying code (if the program code pages are writeable), OH + SROH
  • attack: dynamic taint propagation (to detect self-checksumming routines)
    • taint addresses of instructions, taint backwards to see where the code came from, trace forward to see how the code is being checked

State Integrity

• state inspection: check program states
  • function return values: analyze return values of functions to ensure they are correct
  • stack trace: check stack trace to verify history of function calls (protects against changeware by checking trace that leads to crypto function calls)
  • hardware performance counters: two-phase
    • protection phase: capture profiling information and inject verifiers with thresholds
    • execution phase: collect runtime information and evaluate
  • oblivious hashing (OH): hash execution traces (instruction sequence + memory references) (~0.3%)
    • problem: only works for computations which are independent of the input
    • solution: short-range oblivious hashing (SROH) (~3.1%) to protect data independent instructions
      • data dependent instruction (DDI): at least one operand depends on input data
      • control flow dependent instruction (CFDI): the condition, which leads to the branch that the instruction resides in being taken, depends on input data
      • data independent instruction (DII): may be control flow dependent but not data dependent (!)
• virtual self-checksumming: self-checksumming on virtual obfuscated code
  • no post-compilation patching needed: hashes computed on (virtual) code array

Hardware-Based Software Protection

• protection pyramid (top \to$\to$ bottom): ensure that systems are intact at all times
  1. attestation: a mechanism to prove to a remote party that your operating system and application software are intact and
     trustworthy
     • device identification: only certain machines are allowed in a certain space (note: IP and MAC addresses do NOT count as secure attestation, because they can be spoofed)
     • secure generation of cryptographic keys: poor key generation can lead to system security violations
     • secure key storage: sensitive keys must be secured from external software
     • device health: check machines for possible compromises
  2. secure storage: prevent the disclosure of sensitive information
  3. secure execution: mitigate threats related to the exposure of systems
• static security: system components constitute a hash chain (i.e. if the system starts secure, it stays secure)
• dynamic security: CPU-level security mechanism protects programs through execution (i.e. even if the system starts correctly, something can be changed at runtime)

Static Security

• trusted platform module (TPM): secure cryptoprocessor typically used for verifying that the boot process starts from a trusted combination of hardware and software and storing disk encryption keys
  • platform configuration register (PCR): stores hash of part of the running hardware / software stack, to be used in checksums later via software
  • hash chain: method of providing attestation
    • TPM \to$\to$ boot loader \to$\to$ OS \to$\to$ application(s)
  • features:
    • hardware RNG: cryptographically secure hardware-based psuedo-random number generator
    • key generator: secure generation of cryptographic keys for limited uses
    • remote attestation: creates a nearly unforgeable hash key summary of the hardware and software configuration to verify that the hardware and software have not been changed
    • binding: data is encrypted using the TPM bind key; create cryptographic keys and encrypt them so that they can only be decrypted by the TPM
  • keys:
    • endorsement key (EK / RSA): ID of TPM, generated upon production and used for establishing trust, never used for signing
    • storage root key (SRK): root of trust used to encrypt other TPM-generated keys (hierarchical), generated upon installation
    • attestation identity keys (AIKs): used merely to sign for attestation (proving system state via PCRs)
    • other: binding, sealing, signing...

Dynamic Security

• enclave-based security: CPU-level security enforcement protects programs throughout execution
  • Intel SGX / ARM TrustZone: CPU-enabled code enclaves, where the code and memory remain encrypted (sealed) before, during and after execution in RAM
    • vulnerable to side-channel attacks

Side-Channel Attacks

• side-channel-attack: any attack based on information gained from the implementation of a system rather than weaknesses in the design or algorithm itself
• power consumption: observe peaks based on power usage
• timing attack: analyze time taken by an algorithm; can differ based on input
  • solution: remove time dependencies
• oracle attack: manipulate input to extract information from an oracle (which can only answer yes or no)
  • solution: close side-channel (i.e. shut up)
• search for keys in memory: keys should have high entropy, so look for high randomness in memory dump
• cache attacks: exploit time differences when accessing memory
• cold-boot attack: cool down DRAM to preserve content after reboot, then look for key
  • solution: don't store keys in memory / encrypt keys in memory using some other key stored elsewhere
• attacks on air-gapped systems: not connected to any network
  • optical: powerful cameras
  • Stuxnet: worm, spread via USB sticks
  • AirHopper: malware on infected system generates FM radio signals, which are then decoded by an infected mobile phone
  • BitWhisper: use heat emissions as a communication channel between two infected computers in close proximity
  • PowerHammer: tap and analyze electromagnetic emissions of compromised computer
  • LANTENNA: encode data over radio waves
• LLMs: prompt injection, data leakage, inadequate sandboxing, training data poisoning

Privacy-Enhancing Technologies

• privacy: the right of users of preserve the confidentiality of certain data or actions, while maintaining the functionality of systems
  • contradictions: impact on functionality (e.g. hiding precise location renders finding nearest point of interest useless), accountability (allowing anonymous attacks), efficency (e.g. routing through TOR)

Anonymization

• key attributes: uniquely identifying information (e.g. name, address, phone number...)
• quasi-identifiers: combination of attributes that can be used to identify users (e.g. {ZIP, birth date, gender})
• sensitive attributes: as the name implies (e.g. medical records, salaries...)
• k$k$-anonymity: the information for each person cannot be distinguished from at least k-1$k-1$ other people in the same release
  • formally: a table is k$k$-anonymous if any quasi-identifier present in the released table appears in at least k$k$ records (rows)
  • generalization: replace quasi-identifiers with less specific values (e.g. 47677,47602,47678 \to 476^{**}$47677,47602,47678 \to 476^{**}$)
  • supression: blunt the data (... \to *$... \to *$)
  • attacks: k$k$-anonymity doesn't work if sensitive values in an equivalence class lack diversity or if the attacker has background knowledge
    • homogeneity attack: the sensitive attribute is the same for every entry in an equivalence class
    • background knowledge attack: additionally use some other knowledge / educated guess
• L$L$-diversity: extension of k$k$-diversity, taking the previous attacks into account
  • formally: a table block (equivalence class) is L$L$-diverse if there are at least L$L$ different values of the sensitive attribute
    • a table is L$L$-diverse if every block in the table is L$L$-diverse
  • a background knowledge attack can only succeed if the attacker has L-1$L-1$ background knowledge
  • probabilistic: frequency of most frequent value bounded by \frac 1 L$\frac 1 L$
  • entropy: entropy of the distribution of sensitive values in each class is at least \log(L)$\log(L)$
  • recursive (c,L)$(c,L)$-diversity: makes sure that the most frequent value does not appear too frequently in a block
  • attacks: skewness attack, similarity attack
    • skewness attack: (drastic) skewness in data distribution (e.g. typically only 1% of the population tests positive on a test, but in one block, over half are positive \to$\to$ if we know someone is in this block, there is a 50% chance they tested positive)
    • similarity attack: when all the sensitive attributes can be generalized (e.g. gastric ulcer, gastritis, stomach cancer \to$\to$ the individual suffers from a stomach disease)
• t$t$-closeness: mitigates L$L$-diversity problems
  • a table block (equivalence class) is said to have t$t$-closeness if the distance between the distribution of a sensitive attribute in this class and the distribution of the attribute in the whole table is no more than a threshold t$t$
• differential privacy: carefully add noise to data to maintain a level of accuracy while minimizing the chances of identifying its records \to$\to$ plausible deniability

Example: 4-anonymous table, 3 equivalence classes

• homogeneity attack: class 3; if we know someone is in their 30s and lives in ZIP 130**, we can conclude they have cancer, because all values of the sensitive attribute are the same
• background knowledge attack: class 1; if we know someone is under 30, lives in ZIP 130**, and we have background knowledge that they are vaccinated against hepatitis, we can conclude they have the flu

Inverse Transparency

• "watch the watcher": give data owners oversight over the usage of their data
  • in other words: customer gives data to company, company gives oversight back to customer (how is that data being used?)
  • goal: make misusage unattractive

Passwords

• preimage attack: given h(x)$h(x)$, find x'$x'$ such that h(x')=h(x)$h(x')=h(x)$
  • method 1: list possible passwords (higher probabilities first), calculate h(x)$h(x)$ on the fly for each password
    • +: very simple, no space needed
    • -: high computational effort
  • method 2: list possible passwords, store them alongside hash in file or database, sort by hash
    • for a given h(x)$h(x)$, look for this hash
    • +: fast lookup
    • -: huge database
  • method 3: hash table with same reduction function
    • +: fast(-ish) lookup, some computation, less space
    • -: probability that chains merge (same end likely)
  • method 4: rainbow tables
    • same as method 3, but with different reduction functions
    • +: same as method 3 but fewer chains merge
    • -: lookup more expensive
• salting: add random string to password and hash them, one per user (\to$\to$ same password with different salt results in different hash)
  • lookup tables cannot be pre-computed
• password hashing function: functions specifically designed for that purpose
  • MD5: preimage attack exists
  • SHA-1/2/3: not designed for that purpose, fast \to$\to$ can be brute-forced
  • bcrypt: salt included, iteration count can be increased
  • Argon2: resistant to GPU cracking attacks

Alternatives

• single sign-on (SSO): authenticate using already existing account (e.g. Google, Facebook) on another platform
  • +: more convenient, less passwords to remember
  • -: if your SSO account gets cracked, you lose access to all related services
• multi-factor authentication: can be broken
  • SMS / phone call: can be intercepted, or the code generated might not be securely generated
  • authenticator apps: MFA bombing (bombard a user with multiple requests, hoping to overwhelm and trick them into approving a malicious login attempt)
• passwordless: replace passwords entirely
  • magic links: one-time URL sent to a user's email address
    • +: no password, easy to implement
    • -: email dependent, spam filter, you still need a password to access your email account...
  • Fast Identity Online 2 (FIDO2): use passkeys (unique pair for every website, private key stored on device, public key registered by online service)
    • -: OS-dependent, no way to backup key, no defined recovery process if key is lost...

Malware

• malicious software (malware): software designed to disrupt, damage or gain unauthorized access to a computer system (i.e. targets CIA) \to$\to$ automated MATE
  • virus: malicious executable code attached to another file, spread when an infected file is passed from one system to another
  • worm: standalone program, can spread quickly by itself over the network
  • trojan: malware that carries out malicious operations disguised as something else (desired)
  • spyware: steal private information from a system (and send it to the hacker)
  • ransomware: encrypt data and hold it hostage for a ransom
  • backdoor: grant attacker future access to a system
  • rootkit: modifies OS to create backdoor
  • keylogger: records everything the user types
  • adware (*): potentially unwanted application, (aggresively) displays advertisements
  • riskware (*): not a malicious application by design, but an application which performs sensitive operations that can pose threats if compromised
• detecting malware: undecidable in theory; arms race between malware authors and malware analysts
  • conventional: scanning logic \leftrightarrow$\leftrightarrow$ engine \leftrightarrow$\leftrightarrow$ database
    • string scanning: find substring in string
      • problem: slow for large programs
    • hash scanning: match hash of string / program to malware database
      • problem: avalanche effect \to$\to$ malware author can simply change one byte and the whole hash is invalidated
      • fuzzy hashing algorithms: algorithms where minimal changes in input lead to minimal changes in digest
    • malware-specific detection algorithms: custom code for single malware family / variant (e.g. find section name ATTACH)
    • heuristics: generalize program properties (e.g. \text{connects to web server \& contains decryption loop}$\text{connects to web server \& contains decryption loop}$)
    • emulation: run program in virtual environment and analyze behavior
      • problem: inconsistent (how long to run for? what to check for? what if the malware knows it's running in a VM?)
  • nextgen: use machine learning to automatically recognize behavioral / code patterns
    • thresholds: for something like VirusTotal, use e.g. how many / what antivirus software detects the program as malicious to determine if it truly is malware
    • labeling apps: inaccurate labels leads to inaccurate models (e.g. is adware malicious?)
    • performance decay: model performance decays over time
    • adversarial ML: if attackers know how a machine learning model works, they can tweak their malware to confuse the model

Misconfiguration

• common issues: weak default config, no "best practice" guides, confusing config structure, too much background knowledge required
• security content automation protocol (SCAP): open standards that are widely used to enumerate software flaws and configuration issues related to security, to (automatically) fix them
  • problem: need knowledge
  • solution: share knowledge
    • common vulnerabilities and exposures (CVE): database of vulnerabilities
    • extensible configuration checklist description format (XCCDF): describe how and check if a config is secure
    • open vulnerability and assessment language (OVAL): automated checks
• Center for Internet Security (CIS): where the knowledge ("benchmarks", i.e. standard / best practices) is collected

Problems

• CIS: no one size fits all (some rules may be omitted due to breaking legacy systems or simply being too specific)
  • problem: keep track of chages between CIS guide and personal guide
  • solution: version control
• manual guides: administrators have to go through these manually, which is error-prone (and some might not even do it)
  • could (?) be automated with LLMs or other projects (e.g. OpenSCAP)
• exemptions: sometimes, rules have to be avoided because they might break something, so we need to find a good middle ground
• cyber insurance: for some companies, it's easier to just buy insurance \to$\to$ companies don't share data about incidents / breaches
• availability only: most companies only care about availability (through backups), not on intellectual property theft, which is usually worse
